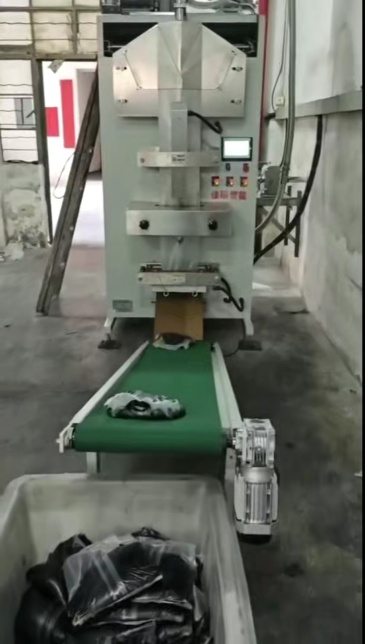

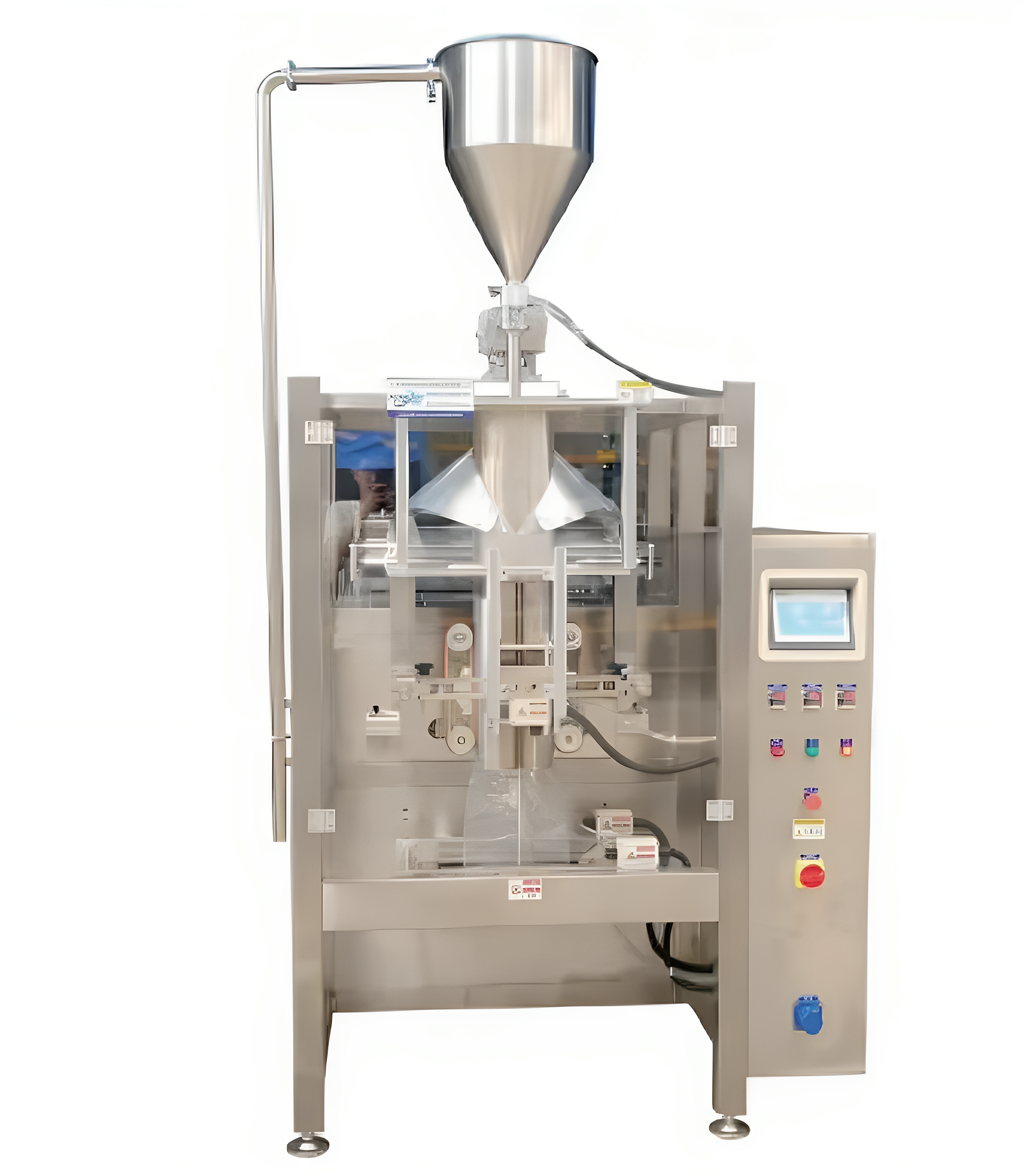

VFFS pouch packaging machine used for paste and liquid package. Overcame the barrier that the bags used to hold the paste could not release air. No bulging, firmly welded. Uses PE/EVA film. Low cost of use.2kg, 5kg, 7.5kg, 10kg 20kg and so on...
Equipment technical parameters: 1.Range of application This machine can do the work of bag-making, weiahting, flling, fllina the nitrogen, date coding, and bag-cutting.2.Main performance and functional characteristics1.Equipped with safety protection, comply with fm's safety management requirements.2.Use intelligent temperature controller to have accurate temperature, which ensures theartistic and neat seal. 3.Use PLC Servo System and pneumatic control system and super touch screen to composethe drive control center which maximize the whole machine's control precision .reliability andintelligentized level. 4.Touch screen can store the technical parameters of various kinds of products ,it is unneces-sary to reset while products changing. 5.With error indicating system , which help to handle the trouble immediately. 6.Make pillow bags and hanging bags in terms of customers’ different requirements.
Technical parameters Model: JSD-730 Measure method: Volume quantitative Making bag size: (L)80-550mm,(w)150-350mm Filling weight: 200-5000g Need change molds Packaging precision: 1% Packaging speed: 2-10bag /min Depend on the product characteristic Power Supply: Three phase 380/220V 50-60 Hz 6kw Pressure: 0.2m³/min Weight: 750Kg
